2012 Avia 36 Custom Aluminum Cruiser

Length: 11.70 m (38’ 5”)
Builder: Avia Design Group / Jim McIntyre
Engine: Cummins QSB 5.9-425 HO Diesel
Location: Port Colborne, Ontario

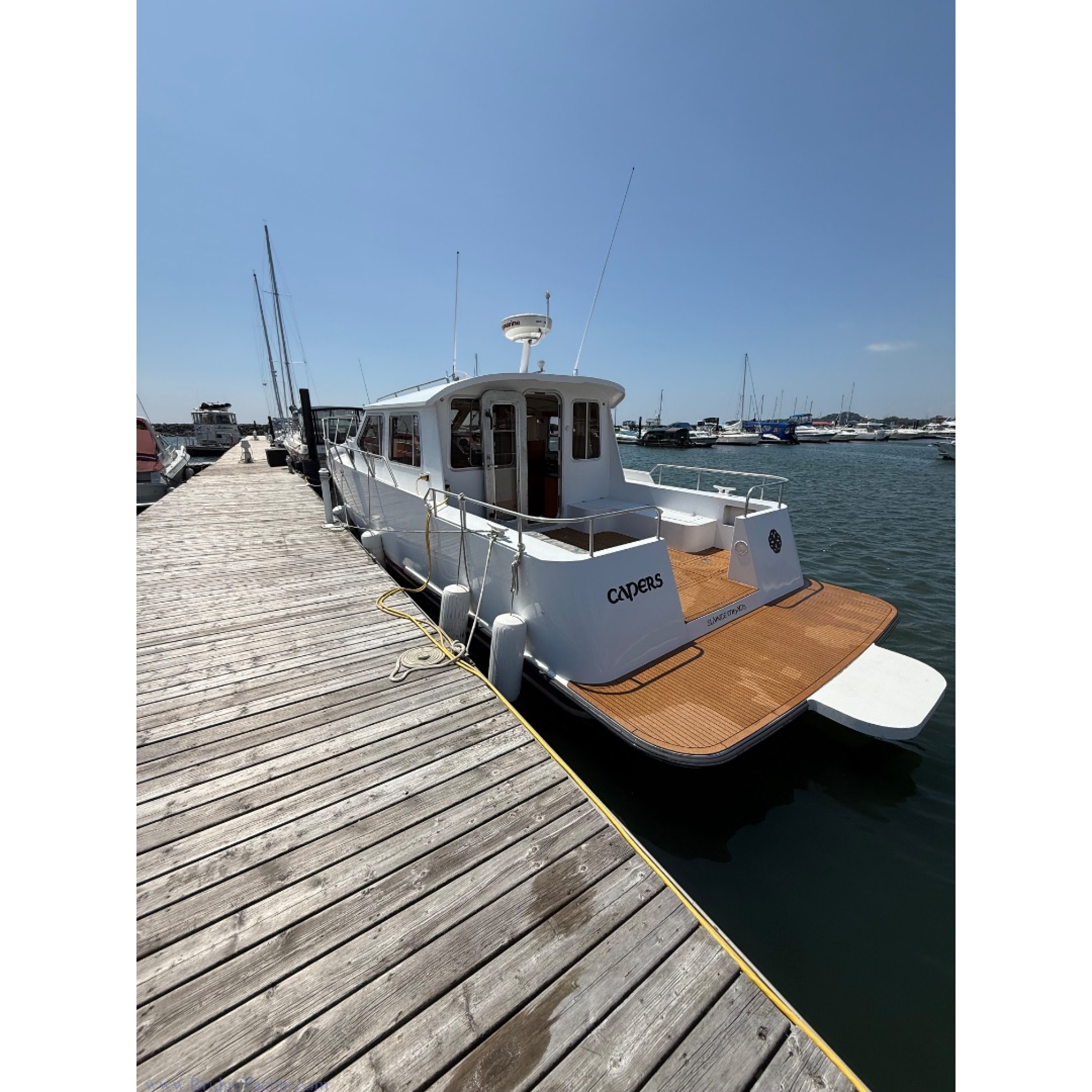

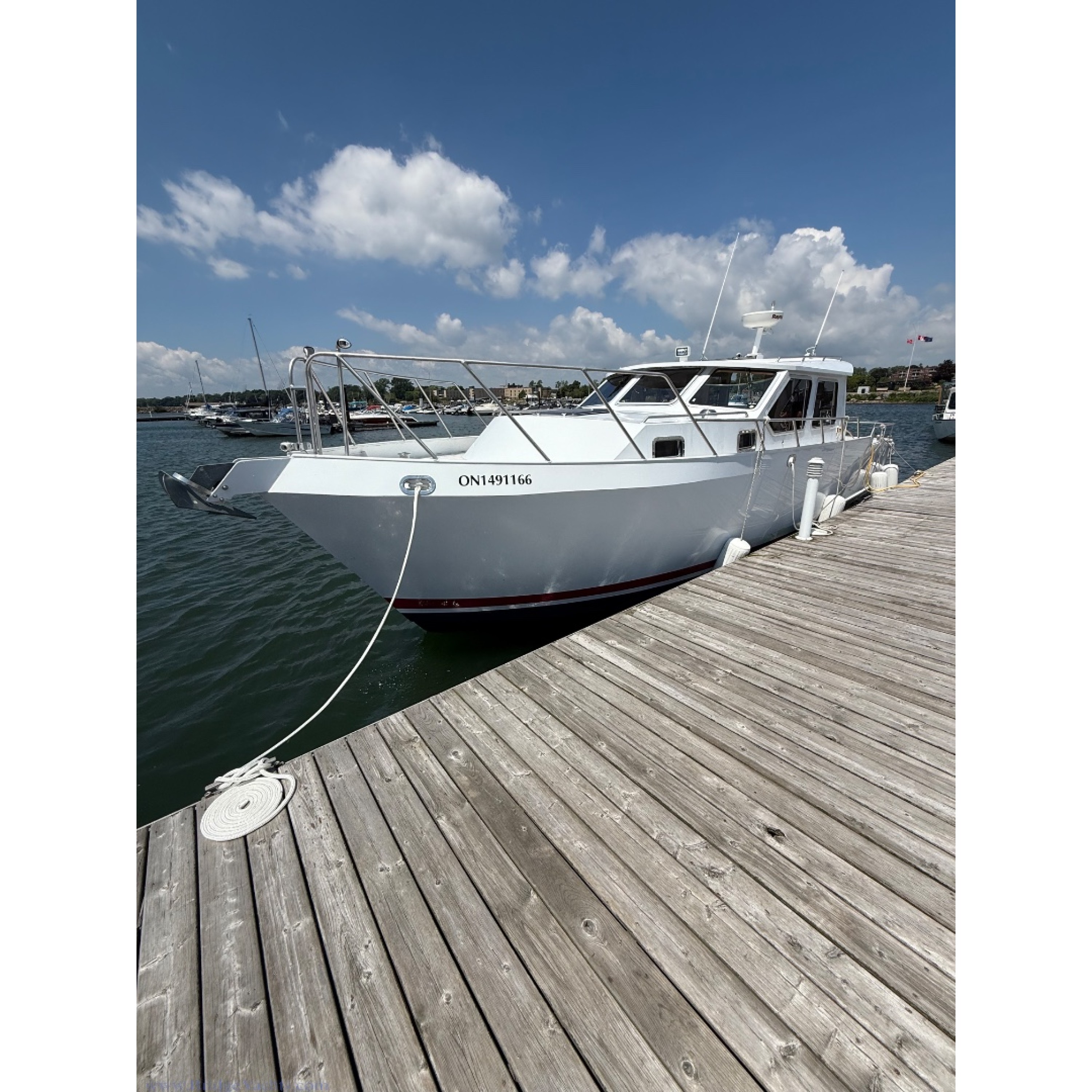

“CAPERS” is a custom-built, aluminum 11.7m (38') pleasure craft fast cruiser designed by Grahame Shannon of Avia Design Group and built by Jim McIntyre in Port Colborne, Ontario. Professionally surveyed by Coastwise Management Inc. in 2025, the vessel was found in GOOD overall condition.

Constructed with marine-grade welded aluminum and heavy structural framing, this vessel offers robust performance with a quality finish inside and out. Hull plating thickness includes ¼” shell, 3/8” deck, and ½” in the engine frame areas.

• Hull Construction: Welded aluminum throughout; consistent with ABYC hull and machinery standards.

• Design: Raked bow, square stern, single hard chine, moderate deadrise.

• Deck & Superstructure: Coated in white epoxy with excellent coverage; non-slip grip deck covering; swim platform.

• Interior: Finished in polished mahogany decking, cabinetry, and trim.

• Main Engine: Cummins Diesel QSB5.9-425 HO

  • Manufactured: August 31, 2006

• Transmission: ZF 280-1A

• Surface Drive: Arneson ASD10 B 113 with 27” Nibrial Propeller

• Trim Tabs: Dual 18” x 12” hydraulic

• Steering: Hydraulic with single helm station

• Generator: Northern Lights Diesel, 7.36 kW, 30 Amp, 74 hrs

• Bow Thruster: 13hp Wesmar Vortex Model VI-8

• 12/120V, 50 Amp service

• Victron Energy charger/inverter

• Shore power with full breaker protection and volt/amp meters

• Marine-approved wiring throughout

• Fuel: 1,200 litres (midship center)

• Fresh Water: 235L port + 235L starboard

• Holding Tank: 130L with 18L vacuum tank

• Grey Water: 95L forward + 156L aft

• Water Heater: Force 10, 11 gallons, 1500W

• Air Conditioning: Ocean Breeze OB18CH, 18,500 BTU

• Navigation: Raymarine hybrid touch chart/radar, Autohelm, ICOM VHF, GPS

• Safety Equipment: Fire extinguishers, lifejackets, flare kit, first aid kits, navigation lights

• Anchor System: Muir windlass with 35 lb. plow anchor
